Product Description
Description：

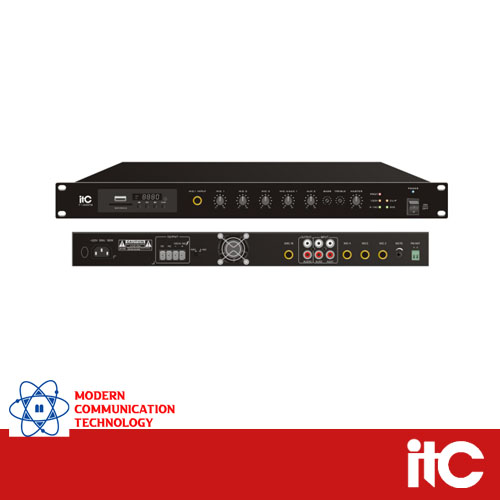

* Digital Mixer Amplifier.
* It is used for background music playback of small and medium-sized indoor venues such as small and medium-sized supermarkets, shopping malls, and leisure cafes.
Features:
* Standard cabinet design (1U), exquisite SMT process design.
* 1 EMC input, 2 AUX inputs, 4 MIC inputs.
* Channel priority function: EMC>MIC1>MIC2, MIC3, AUX1, AUX2.
* Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control function.
* The device is equipped with level indication, overload and protection indicators.
* The device has good self-protection such as short circuit, overload and overheating.
* Two output modes: 100V, 4-16Ω.
* The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy saving and ultra-stable design of class D digital power amplifier.
* Wide voltage supply: 180V-240V can work normally.
Specifications:
|
Model |
T-60D/T-60DV |
T-120D/T-120DV |
T-240D/T-240DV |
T-350D/T-350DV |
T-500D/T-500DV |
|
|
Output Terminals |
4-16Ω, 100V |
|||||
|
Output Power |
60W |
120W |
240W |
350W |
500W |
|
|
Input Sensitivity & Impedance |
MIC1, 2, 3, 4 input:5mV/600Ω unbalanced 6.3 connector |
|||||
|
AUX1, 2 input:350mV/10KΩ unbalanced RCA connector |
||||||
|
EMC input:775mV/10KΩ unbalanced 6.3 connector |
||||||
|
Output Sensitivity & Source Impedance |
MIX OUT:1000mV/470Ω unbalanced RCA connector |
|||||
|
|
||||||
|
Tone |
Bass:±10dB at 100Hz |
|||||
|
Treble:±10dB at 10KHz |
||||||
|
Frequency Response |
80Hz~16KHz(+1dB,-3dB) |
|||||
|
SNR |
MIC1, 2, 3: 66dB; AUX1, 2: 80dB |
|||||
|
THD |
Less than 0.5%(@1KHz, 1/3 rated power) |
|||||
|
Mute |
MIC 1 prior to MIC2-4,AUX1-2 audio input, EMC prior to all audio input |
|||||
|
Channel Crosstalk Attenuation |
≥50dB |
|||||
|
Cooling |
Forced fan cooling after side entry, fan start after start, |
|||||
|
stepless speed change processing |
||||||
|
Protection |
Overheating protection, over current protection, short circuit protection |
|||||
|
Power Supply |
~220-240V /50Hz |
|||||
|
Power Consumption |
100W |
160W |
300W |
500W |
650W |
|
|
Dimension |
484×300×44mm |
|||||
|
Weight |
3.2Kg |
3.6Kg |
3.7Kg |
3.9Kg |
4.0Kg |
|
