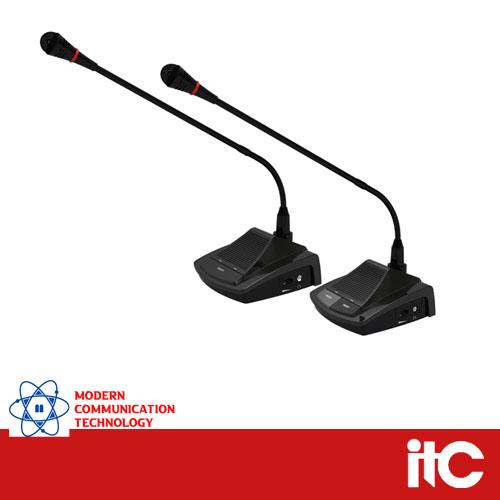

ITC Digital Conference System Chairman & Delegate, TS-0602 & TS-0602A

ITC Digital Conference System Chairman & Delegate, TS-0602 & TS-0602A

Price: Call Modern Communication Technology

Mobile: 01709-918720, 01709918721

Feature:   * With new numerical control design. * With ring-shaped speech indicator light that can show the status of speech. Red light stands for speaking , gree

  • Model .Brand: ITC, Model: TS-0602 & TS-0602A
  • Category.Conference System
  • Description
  • Additional Information
  • Request Quote

Feature:



* With new numerical control design.

* With ring-shaped speech indicator light that can show the status of speech. Red light stands for speaking , green light stands for waiting for a speech.

* The special microphone shield design can eliminate the low frequency sound even without using the windproof cotton cover.

* The reelable condenser microphone pole and professional large heart-shaped condenser microphones core make the unit a high sensitivity and intelligibility of the speech.

* The microphone has high and adjustable sensitivity.

* The power of the units is supplied by system host at 24V safe voltage.

* The units are connected by 8-core cables in “T” shape.

* With two groups of 3.5mm stereo sound output socket, can be used for record and earphone connection.

* Built-in HIFI speaker and volume control; with squeal-suppressed function. The built-in HIFI speaker will shut off automatically when the microphone is turned on.

* With discussion / automatic video-tracking function.



Specification:





Model

TS-0602

TS-0602A

Microphone type

Heart shaped projection electrets microphone

Cardioid electret microphone

Frequency response

80Hz~16KHz

80Hz~16KHz

SNR

1KΩ

1KΩ

Sensitivity

-34±2dB(0dB=1V/Pa,at 1kHz)

-34±2dB(0dB=1V/Pa,at 1kHz)

Maximum SPL

100dB(THD>3%)

100dB(THD>3%)

SNR

>80dB

>80dB

Crosstalk

>70dB

>70dB

Dynamic range

>80dB

>80dB

THD

<0.1%

<0.1%

MAX power consumption

2W

2W

Headphone load

8-32Ω

8-32Ω

Headphone volume

Max 40mW

Max 40mW

Headphone jack

3.5mm mono jack

3.5mm mono jack

Standard

IEC60914

IEC60914

Connector

Comes with 1.8m aviation 8-core

Comes with 1.8m aviation 8-core

Hand-in-hand extension

YES

YES

Power supply

Controller power supply DC24V

Host power supply DC24V

Colour

Black

Black

Weight

0.86kg

0.86kg

Microphone rod height

409mm

409mm

Dimension (LxWxH)

144×128×62mm

144×128×62mm

Installation method

Desktop

Desktop
