Feature:

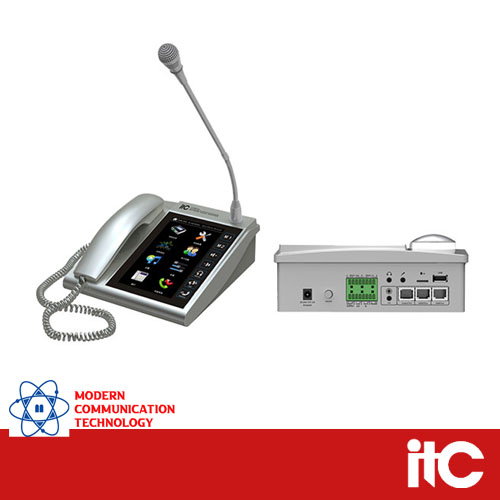

* Brand-new desktop design, 7-inch TFT true color screen, graphical UI interface, full capacitive touch screen control, user-friendly operation, high-end and beautiful appearance.
* Graphical volume adjustment interface to adjust the volume of network programs, local MIC, and local AUX.
* Real-time display of status information such as program broadcast, two-way intercom, timed broadcast, equipment operation, IP address, MAC address, and so on; support stopping the program broadcast with one button.
* The Luna cloud-based server has high security and excellent stability, and supports 7×24 hours of continuous work.
* Standard dual network interfaces support exchange extension mode and redundant backup mode; full rate connection is up to 1000M; support cross-network segment and cross-router.
* Support 485 extension port of RJ45, and various control panels are optional to achieve more control extensions and function extensions.
* Rich network access methods, including DHCP automatic allocation access, ADSL intelligent dial-up access, fixed IP address access, etc.
* Support help and intercom ring tones, voice reporting, lighting, text and other prompt methods, support one-key answer, one-key monitoring, hands-free calls, and missed call information recording function.
* Two calling methods: the microphone pole and the phone handle (hand-held handset can be used for confidential conversation/intercom), suitable for different application places.
* Support button customization, including one-key broadcast, one-key intercom, one-key conference, one-key music, one-key help,and other shortcut keys.
* Integrated 24Bit professional sound card, enabling enthusiast audio playback; audio stream is up to 768kpbs.
* Built-in 8GByte SSD, support remote management on the server, support background download in limited network speed or automatic download during idle time, reduce the burden of the network; the media library files support offline automatic playback function.
* Integrated USB and Micro SD (TF) card interfaces, support up to 4T USB storage devices and 128G/SDXC card, achieve local playback of the audio files, and can broadcast on demand the contents of USB, TF card and media library on the terminals within the authority scope.
* Built-in 2W full-range intercom speaker provides clear and powerful sound; super and hyper cardioid microphone ensures clear calls without interference.
* 1 AUX audio input, 1 group of MIC inputs, built-in digital pre-amplifier, support user-defined priority rank.
* Built-in 1 Line out independent audio output, realize sound reinforcement with external amplifiers; support standard headset interface, realize audio monitoring, headset microphone sound reinforcement, etc.
* 2 short-circuit outputs, 2 short-circuit inputs; support flexible short-circuit triggering customized task function; can realize local media playback, local receiving channels, broadcasting, fire alarm, recording, sending messages and emails, and pop-up prompts; can realize electronic lock, fire control, monitoring and other linkage applications of the third party equipment and the platform.
* Communication protocol: TCP/IP, UDP, IGMP(multicast), IETF SIP; audio format: MP3, WMA, WAV.
* Support the voice change function, the call initiator can choose to change his voice, which meets the intercom needs of special places.
* Support short-circuit restoring the factory settings, which is convenient for system maintenance and management to the greatest extent.
* Support the switching of multiple users, support customized user function permissions.
* Support viewing equipment status and managing equipment information through the system background WEB.
* With terminal management function, support directly managing the terminals within the authority, and can view and manage the current tasks and status of the terminal.
* Wide voltage power supply of mains + DC24V standby power supply with zero switching time provide the best energy supply for the 7×24 hours of continuous work of the terminal.
* Support the PA system remotely upgrading the terminal firmware, without the need to upgrade the terminal locally, reducing the work intensity of maintenance personnel.
